Because we are committed on high quality



"Made in Germany" already starts at our enty-level series ALPHA, which we build for you in our own factory.

ALPHA is an unusually good value for money, providing the option to amaze your ears without over-straning your purse.



  • 2-Way-Component-System

      Technical Data



      Diameter T/W:

      19 mm (0.75“) / 16 cm (6.5“)

      Principle:

      2-Way-Component-System

        Power Handling:

        50 W RMS / 120 W Max.

          Freq. Response:

          40 – 28.000 Hz

            Impedance:

              Crossover Frequency:

              4.000 Hz (-/12 dB/Okt.)

                Sensitivity:

                88 dB (2,83V/1m)



                  Installation Manual

                  more 6,5" models

                • 2-Way-Coaxial-System

                    Technical Data



                    Diameter T/W:

                    19 mm (0.75“) / 16 cm (6.5“)

                    Principle:

                    2-Way-Coaxial-System

                      Power Handling:

                      50 W RMS / 120 W Max.

                        Freqg. Response:

                        42 – 28.000 Hz

                          Impedance:

                            Crossover Frequency:

                            4.500 Hz (-/12 dB/Okt.)

                              Sensitivity:

                              90 dB (2,83V/1m)



                                Installation Manual

                                more 6,5" models

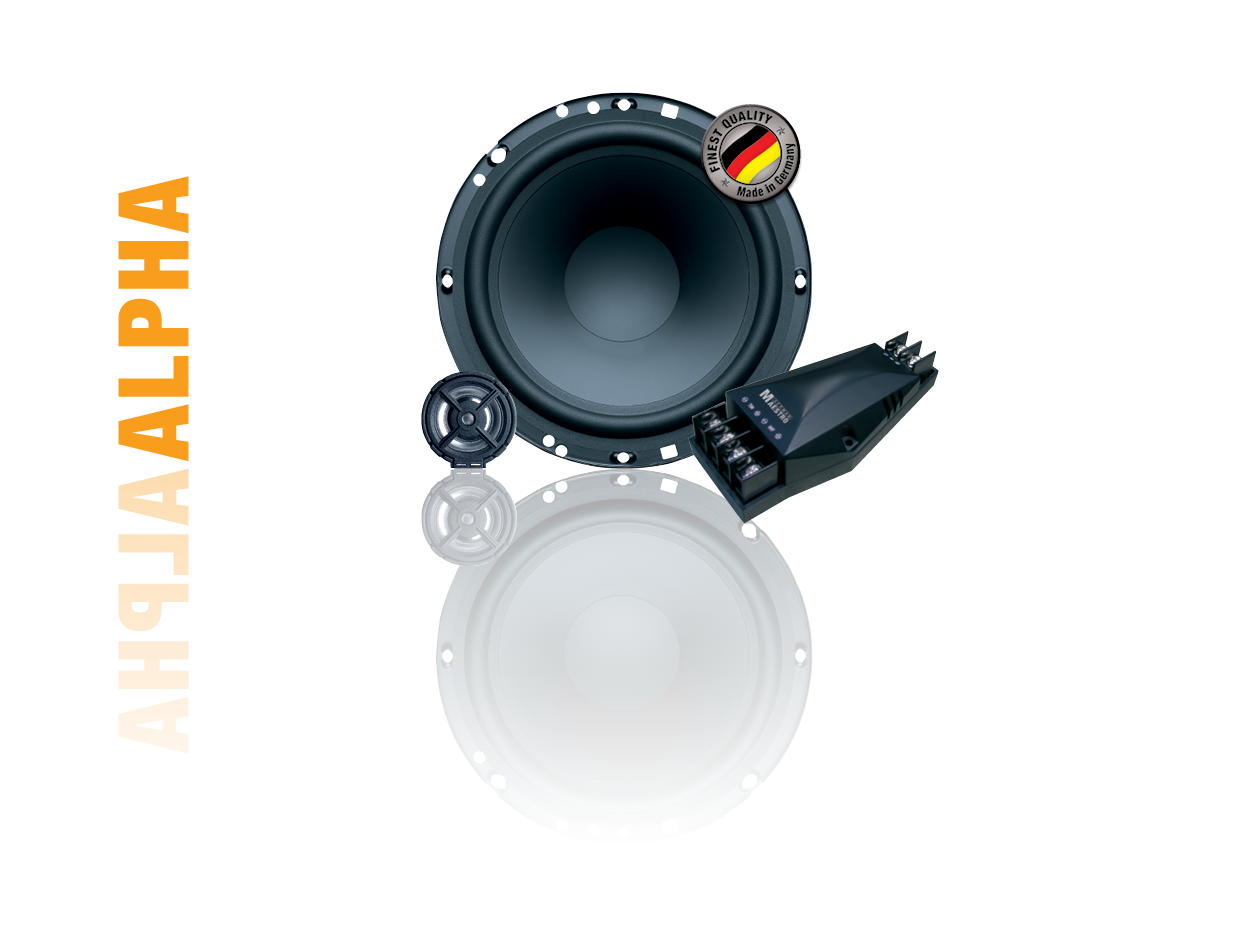

                              ALPHA-Line

                              One-piece 0.75" (19mm) tweeter with German made pure titanium dome, embedded in highly damped plastic housing

                              Rugged metal basket woofer with polypropylene cone

                              ALPHA AS: Compact crossovers for easy integration in the car

                              ALPHA AC: Compact-sized, chassis-mounted crossovers

                              Mounting rings for the tweeters and grills for the woofers included
