Products, made for „Makers“

The GermanMAESTRO EPIC-line convinces by the extreme wide range of possible applications. No matter if 4”, 5”, 6.5”, 6x8 or 6x9 System, the EPIC-line provides the comfort to conveniently switch the installation-scenario from a component installation with the tweeter placed at a random position to a coaxial installation with woofer and tweeter on same axis.

The magnetic lock system allows you to mount the tweeter in the center of the woofer with an easy hand grip. Further, there are ultra-flat 4”, 5”, and 6.5“component systems available with a front-magnet system made from high energy neodymium magnets. The most shallow system has a total mounting depth of just 1.27”/32,25mm. For extraordinary installations, there is also an 8” 2-way and 3-way system available.

Another specialty of EPIC-line is the extremely compact titanium-dome tweeter ET 20 WS with no more than 0.8”/20mm dome diameter. Regardless of this very compact size, this tweeter in MegaSphere™ technology is still very SPL capable and has a very fine sound reproduction and is also available as a separate upgrade-kit.

close ↑

↓ additional information

2-Way-Compo./Coaxial-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 16 cm (6.5“)

Principle:

2-Way-Compo./Coaxial-System

Power Handling:

60 W RMS / 195 W Max.

Freq. Response:

30 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

4.000 Hz (6/12 dB/Okt.)

Sensitivity:

88 dB (2,83V/1m)

Installation Manual

DSP-Settings

more 6,5" models
2-Way-Compo./Coaxial-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 13 cm (5.25“)

Principle:

2-Way-Compo./Coaxial-System

Power Handling:

50 W RMS / 165 W Max.

Freq. Response:

52 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

4.000 Hz (6/12 dB/Okt.)

Sensitivity:

86 dB (2,83V/1m)

Installing Manual

more 5,25" models
2-Way-Compo./Coaxial-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 10 cm (4“)

Principle:

2-Way-Component-System

Power Handling:

40 W RMS / 130 W Max.

Freq. Response:

60 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

3.700 Hz (6/12 dB/Okt.)

Sensitivity:

84 dB (2,83V/1m)

Installation Manual

more 4" models
2-Way-Compo./Coaxial-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 6 x 9"

Principle:

2-Way-Compo./Coaxial-System

Power Handling:

50 W RMS / 165 W Max.

Freq. Response:

30 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

4.000 Hz (6/12 dB/Okt.)

Sensitivity:

86 dB (2,83V/1m)

Installation Manual

more 6x9" models
2-Way-Compo./Coaxial-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 6 x 8"

Principle:

2-Way-Compo./Coaxial-System

Power Handling:

40 W RMS / 130 W Max.

Freq. Response:

38 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

3.500 Hz (6/12 dB/Okt.)

Sensitivity:

88 dB (2,83V/1m)

Installation Manual

more 6x8" models

Ultra Flat - Systems

2-Way-Component-System
Technical Data

Diameter T/W:

25 mm (1“) / 16 cm (6.5“)

Principle:

2-Way-Component-System

Power Handling:

50 W RMS / 165 W Max.

Freq. Response:

38 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

5.200 Hz (12 dB/Okt.)

Sensitivity:

88 dB (2,83V/1m)

Installation Manual

more 6,5" models
2-Way-Component-System
Technical Data

Diameter T/W:

25 mm (1“) / 13 cm (5.25“)

Principle:

2-Way-Component-System

Power Handling:

35 W RMS / 115 W Max.

Freq. Response:

52 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

5.200 Hz (12 dB/Okt.)

Sensitivity:

87 dB (2,83V/1m)

Installation Manual

more 5,25" models
2-Way-Component-System
Technical Data

Diameter T/W:

25 mm (1“) / 10 cm (4“)

Principle:

2-Way-Component-System

Power Handling:

30 W RMS / 100 W Max.

Freq. Response:

59 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

3.800 Hz (12 dB/Okt.)

Sensitivity:

84 dB (2,83V/1m)

Installaion Manual

more 4" models

20 cm / 8" - Systems

3-Way-Component-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 10 cm (4") / 20 cm (8“)

Principle:

3-Way-Component-System

Power Handling:

75 W RMS / 245 W Max.

Freq. Response:

26 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

147 / 3.400 Hz (12 dB/Okt.)

Sensitivity:

88 dB (2,83V/1m)

Installing Manual

DSP-Settings

more 8" models
2-Way-Component-System
Technical Data

Diameter T/W:

20 mm (0.8“) / 20 cm (8“)

Principle:

2-Way-Component-System

Power Handling:

75 W RMS / 240 W Max.

Freq. Response:

28 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

4.000 Hz (6/12 dB/Okt.)

Sensitivity:

88 dB (2,83V/1m)

Installation Manual

more 8" models

Tweeter-Kit

Technical Data

Diameter T:

20 mm (0.8“)

Principle:

Tweeter

Power Handling:

60 W RMS / 120 W Max.

Freq. Response:

4.000 – 30.000 Hz

Impedance:

4Ω

Crossover Frequency:

5.000 Hz (12 dB/Okt.)

Sensitivity:

91 dB (2,83V/1m)

Installation Manual

EPIC EV

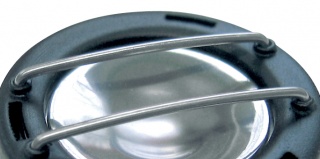

Ultra-compact-sized tweeters based on exclusive MegaSphere™ - Technology with inverted one-piece titanium dome and powerful neodymium magnet system in metal housing with Concerted Thermal Compensation (CTC) for optimized heat dissipation

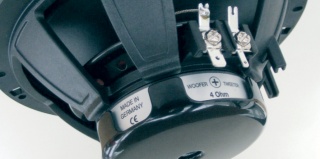

Woofer with two-piece plastic chassis, polypropylene cone and magnet system cooled by specially designed metal cover

Edge wound 1" (25mm) voice coils

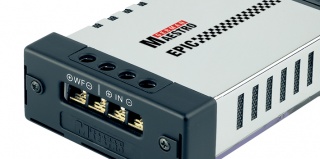

EPIC crossover with unique MultiMOUNT system (MMS) for limitless mounting possibilities. Three-level tweeter output

Surface mounting rings, grilles and additional mounting accessories included (EV 6808 without woofer grills)

Separate or coaxial mounting with EV-Systems

EPIC ES

Woofer with two-piece plastic chassis, polypropylene cone and magnet system cooled by specially designed metal cover

Edge wound 1" (25mm) voice coils

EPIC crossover with unique MultiMOUNT system (MMS) for limitless mounting possibilities. Three-level tweeter output (ES 804010: Four-level tweeter attenuator with rotary switch)

Surface mounting rings, grilles and additional mounting accessories included (ES 804010 / ES 8009 without 8" woofer grills)

EPIC EFS - Ultra Flat System

Woofer with extremely shallow plastic chassis for optimized installation in stock locations with limited mounting depths

Encapsulated, front-mounted neodymium magnet system supported by Concerted Thermal Compensation (CTC)

1" tweeter with titanium dome in plastic housing

EPIC crossover with unique MultiMOUNT System (MMS) for limitless mounting possibilities. Three-level tweeter output

Additional option for coaxial mounting

All component systems of SV and EV line can be easily converted to coaxial-systems and therefore be adjusted for changing installation scenarios. Just remove the phase-plug and exchange it with the tweeter mounted on the port attached in the accessory – done.
