Leaving the common roads for Approaching a new, pioneering step of engineering

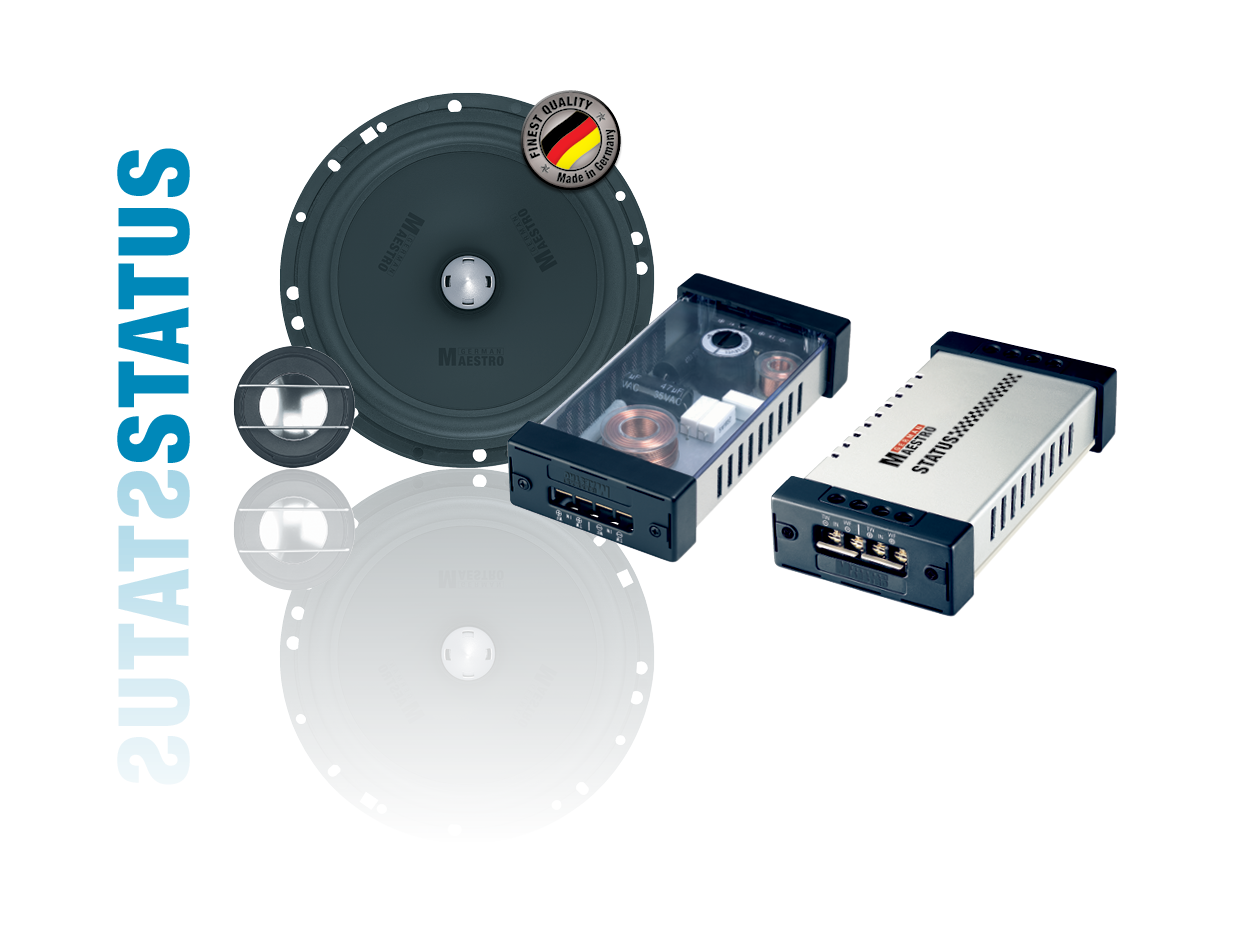

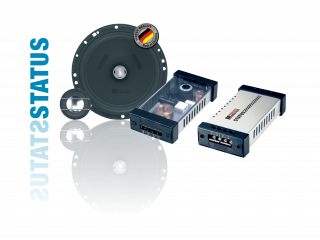

The GermanMAESTRO STATUS-Line stands for „State-of-the-Art“-products and proves, that intelligent “Made in Germany” quality can also set new standards with regard to loudspeakers.

  • 2-Way-Compo./Coaxial-System

      Technical Data



      Diameter T/W:

      40 mm (1.6“) / 16 cm (6.5“)

      Principle:

      2-Way-Compo./Coaxial-System

        Power Handling

        60 W RMS / 195 W Max.

          Freq. Response:

          30 – 32.000 Hz

            Impedance:

              Crossover Frequency:

              2.900 Hz

                Sensitivity:

                87 dB (2,83V/1m)



                  Installation Manual

                  DSP-Settings

                  more 6,5" models

                • 2-Way-Compo./Coaxial-System

                    Technical Data



                    Diameter T/W:

                    40 mm (1.6“) / 13 cm (5.25“)

                    Principle:

                    2-Way-Compo./Coaxial-System

                      Power Handling

                      50 W RMS / 165 W Max.

                        Freq. Response:

                        52 – 32.000 Hz

                          Impedance:

                            Crossover Frequency:

                            2.900 Hz

                              Sensitivity:

                              87 dB (2,83V/1m)



                                Installation Manual

                                more 5,25" models

                              • 2-Way-Compo./Coaxial-System

                                  Technical Data



                                  Diameter T/W:

                                  40 mm (1.6“) / 10 cm (4“)

                                    Principle:

                                    2-Way-Component-System

                                      Power Handling

                                      40 W RMS / 130 W Max.

                                        Freq. Response:

                                        60 – 32.000 Hz

                                          Impedance:

                                            Crossover Frequency:

                                            2.000 Hz

                                              Sensitivity:

                                              85 dB (2,83V/1m)



                                                Installation Manual

                                                DSP-Settings

                                                more 4" models

                                                • 2-Way-Compo./Coaxial-System

                                                    Technical Data



                                                    Diameter T/W:

                                                    40 mm (1.6“) / 16 cm (6.5“)

                                                      Principle:

                                                      2-Way-Compo./Coaxial-System

                                                        Power Handling

                                                        60 W RMS / 195 W Max.

                                                          Freq. Response:

                                                          30 – 32.000 Hz

                                                            Impedance:

                                                              Crossover Frequency:

                                                              Crossover not included

                                                                Sensitivity:

                                                                87 dB (2,83V/1m)



                                                                  Installation Manual

                                                                  more 6,5" models

                                                                  Add-A-Woofer-System

                                                                    Technical Data



                                                                    Diameter T/W:

                                                                    - / 16 cm (6.5“)

                                                                      Principle:

                                                                      Add-A-Woofer-System

                                                                        Power Handling:

                                                                        70 W RMS / 230 W Max.

                                                                          Freq. Response:

                                                                          30 – 700 Hz

                                                                            Impedance:

                                                                              Crossover Frequency:

                                                                              150 Hz

                                                                                Sensitivity:

                                                                                85 dB (2,83V/1m)



                                                                                  Installation Manual

                                                                                  DSP-Settings

                                                                                  more Subwoofer

                                                                                    Ultra high efficiency Tweeter

                                                                                      Technical Data



                                                                                      Diatmeter T/W:

                                                                                      40 mm (1.6“)

                                                                                        Principle:

                                                                                        Tweeter

                                                                                          Power Handling:

                                                                                          25 W RMS / 50 W Max.

                                                                                            Freq. Response:

                                                                                            800 – 32.000 Hz

                                                                                              Impedance:

                                                                                                Crossover Frequency:

                                                                                                Crossover not included!

                                                                                                  Sensitivity:

                                                                                                  93 dB (2,83V/1m)



                                                                                                    Installation Manual

                                                                                                      Status SV

                                                                                                      Tweeter based on exclusive UltraSphere™-Technology with inverted two-piece titanium dome and extremely powerful neodymium ring magnet system

                                                                                                      Woofer with two-piece carbon-fibre reinforced plastic chassis and polypropylene cone magnet system with specially designed metal cover for additional cooling

                                                                                                      Edge wound 1" (25mm) voice coils

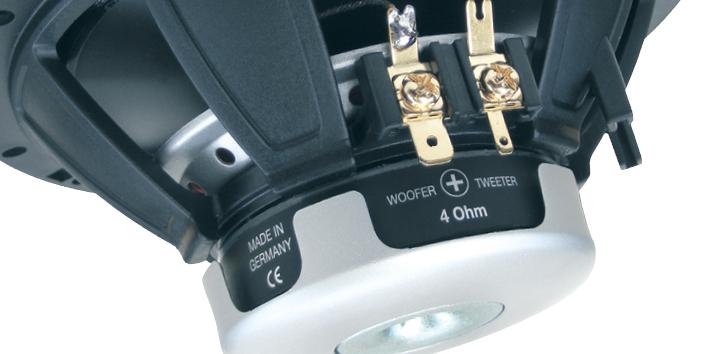

                                                                                                      Connection terminals gold-plated allowing for the best possible signal transfer

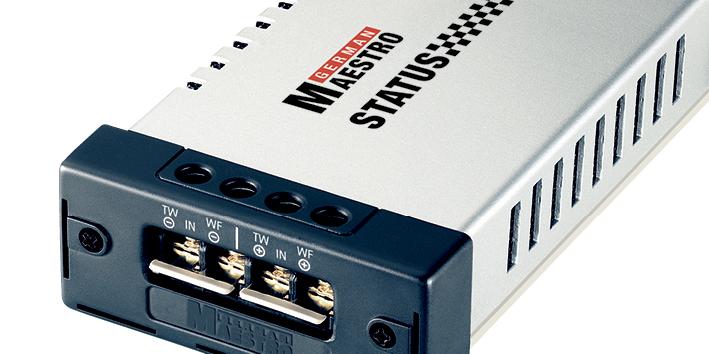

                                                                                                      STATUS Performance-crossover with unique MultiMOUNT System (MMS) for limitless mounting possibilities. Three-level tweeter attenuator with rotary switch. Selected parts

                                                                                                      Bi-wiring and bi-amping enabled

                                                                                                      Surface mounting rings, grilles and additional mounting accessories included

                                                                                                      STATUS SV 6509 Active without passive Premium Performance crossovers

                                                                                                      Separate or coaxial mounting



                                                                                                      SW 6509 Add-A-Woofer-System

                                                                                                      The Add-A-Woofer-System allows you to either add an additional 6.5” woofer to any 2-way system, or upgrade it to a complete 3-way system. The SW 6509 crossovers can be connected parallel to the 2-way system and their low-pass output can be used for the additional woofers, or you connect them in series before the 2-way system and use the also available high-pass output as input for the 2-way system crossover to cut off the low frequencies.



                                                                                                      Additional option for coaxial mounting

                                                                                                      All component systems of SV and EV line can be easily converted to coaxial-systems and therefore be adjusted for changing installation scenarios. Just remove the phase-plug and exchange it with the tweeter mounted on the port attached in the accessory – done.
