The new GermanMAESTRO LINEA-S series' objective was to get a speaker line created fitting acoustically perfectly into any interior environment. Also the speakers' cabinets' were designed to provide pure understatement according the attitude of European Art: "Less is more"
Hereby engineer's focus was to provide always highest sound performance, also in those environments with poor speaker placement options.

    Acoustically the principle of direct transducing was applied, in order to realize a precise projection of sonically panoramas as well as music instruments in their right sizes and -tonalities.

    Concepts acoustically based on environment reflections usage, in order to fill sonically the listener chambers, were abandoned, because the GermanMAESTRO engineers think that those uses neither project instruments in the right sizes and tonality nor their acoustically panoramas. So the GermanMAESTRO engineers solution was based on mainly two new exclusive technologies:

      The UltraSphere™Technologie drives the LINEA-S especially with a 5.1. Home-Theatre application to an extraordinary precision in any sound effect's projection and to a very powerful sound reproduction.

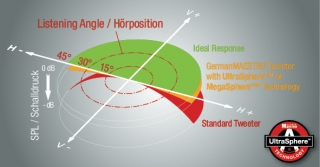

        Used with Hifi-Stereo application the UltraSphere LINEA-S speakers significantly extend the sweet-spot position in its width and depth, which is usually very narrow with other traditional speaker systems.

        UltraSphere™- combined with SyncVoice™-Technology provides to listeners the experience of such an outstanding homogenous, precise and powerful sound performance that it seems to him as impossible hearing this sound just from 5 different sonic-sources. This is true even in less than optimal loudspeaker placements.

          It doesn't matter if you are listening to a great live concert, or if you watch a hot Action-Thriller, this GermanMAESTRO LINEA-S-System grants always most exciting shivers down your spine.

            • MS-F1SB

              Semi-Gloss Black

            • MS-F1PW

              Piano White

            • MS-F1PB

              Piano Black



            LINEA-S, MS F-One

            2 1/2 - Way Floorstand Loudspeaker



            High/midrange drivers and bass driver are operating in acoustically separated chambers. Outstanding 3D radiation- and precise sound projection capabilities also in "off-sweet-spot" listeners' positions. Very powerful bass reproduction due to the use of two extra long-stroke 6.7" bass drivers with polypropylene cone. Excellent SPL capabilities, also with processing very complex sound signals. With SyncVoiceT perfect matching capabilities with all other LINEA-S models.



            Principle

            Driver Units



            Power Handling

            Frequency Response

            Nominal Impedance

            Crossover Frequency

            Crossover Slope

            Sensitivity

            Dimensions (W/H/D)



            Download



            2 1/2 Way Floorstand

            1 x 1,6" (40 mm) Tweeter

            2 x 6,7" (17 cm) Mid-Bass

            110 W RMS / 300 W max.

            26 - 32.000 Hz

            4 Ω

            120 Hz / 2.200 Hz

            12 / 12 / 12 dB / Octave

            89 dB (1W/1m)

            19,7 / 99,8 / 30 cm

            7.76 / 39.30 / 11.82 inch

            Manual

            • MS-B1SB

              Semi-Gloss Black

            • MS-B1PW

              Piano White

            • MS-B1PB

              Piano Black



            LINEA-S, MS B-One

            2 - Way Bookshelf / Rear Loudspeaker



            Very powerful full range bookshelf speaker for finest stereo hifi application. Combined with an active subwoofer the speakers can be extended towards a modular surround-sound system. The UltraSphereT tweeter HT 40 WS in combination with the 6.7" cone-driver provides a very precise sound reproduction with excellent 3D radiation capabilities even with unfavorable bookshelf placements. The use of a long-stroke woofer concept driving a 6.7"polypropylene cone, provides also a very surprising powerful bass reproduction and impressive SPL capabilities. With SyncVoiceT perfect matching capabilities with all other LINEA-S models.



            Principle



            Driver Units



            Power Handling

            Frequency Response

            Nominal Impedance

            Crossover Frequency

            Crossover Slope

            Sensitivity

            Dimensions (W/H/D)



            Download



            2-Way Bookshelf / Rear

            Loudspeaker

            1 x 1.6" (40mm) Tweeter

            1 x 6.7" (17cm) Mid-Bass

            80 W RMS / 200 W max.

            38 - 32.000 Hz

            6 Ω

            1.900 Hz

            12 / 12  / Octave

            85 dB (1W/1m)

            19,7 / 37,2 / 30 cm

            7.76 / 14.65 / 11.82 inch

            Manual

            • MS-C1SB

              Semi-Gloss Black

            • MS-C1PW

              Piano White

            • MS-C1PB

              Piano Black



            LINEA-S, MS C-One

            2 - Way Center Loudspeaker



            Due to the UltraSphere™ tweeter's HT 40 WS very special capabilities, the cross-over frequency point to the cone midrange driver is processed very low at 1.800 Hz. This results in outstanding sound projection capabilities also providing extremely wide radiation angles (+- > 60° off axis), without any significant information loss. Excellent SPL capabilities. With SyncVoiceT perfect matching capabilities with all other LINEA-S models.



            Principle



            Driver Units



            Power Handling

            Frequency Response

            Nominal Impedance

            Crossover Frequency

            Crossover Slope

            Sensitivity

            Dimensions (W/H/D)



            Download



            2 - Way Center

            Loudspeaker

            1 x 1.6" (40mm) Tweeter
            2 x 5.1" (13cm) Mid-Bass

            80 W RMS / 180 W max.

            42 - 32.000 Hz

            6 Ω

            1.800 Hz

            12 / 12 / Octave

            87 dB (1W/1m)

            41 / 16,4 / 30 cm

            16.14 / 6.46 / 11.82 inch

            Manual
